itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > > Class Template Reference

#include <itkVectorImageRegionIterator.h>

Inheritance diagram for itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >:

Collaboration diagram for itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >:

Detailed Description

template<typename TPixel, unsigned int VImageDimension>
class itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >

Definition at line 245 of file itkVectorImageRegionIterator.h.

Public Types
typedef Superclass::AccessorType	AccessorType
typedef Superclass::ImageType	ImageType
typedef Superclass::IndexType	IndexType
typedef Superclass::InternalPixelType	InternalPixelType
typedef Superclass::OffsetType	OffsetType
typedef Superclass::PixelContainer	PixelContainer
typedef Superclass::PixelContainerPointer	PixelContainerPointer
typedef Superclass::PixelType	PixelType
typedef VariableLengthVector< InternalPixelType >	PixelVectorType
typedef Superclass::RegionType	RegionType
typedef VectorImageRegionIterator	Self
typedef Superclass::SizeType	SizeType
typedef ImageRegionIterator< Image< TPixel, VImageDimension > >	Superclass

Public Member Functions
void	GetVector (PixelVectorType &vec, const int offIndex=0) const
Self &	operator= (const Self &it)
void	SetRegion (const RegionType &regionInput)
void	SetVector (const PixelVectorType &value, const int offIndex=0)
	typedef (itk::Concept::SameType< ImageType, Image< InternalPixelType, VImageDimension > >) SameTypeCheck
	VectorImageRegionIterator ()
	VectorImageRegionIterator (const Self &it)
	VectorImageRegionIterator (ImageType *ptr, const RegionType &region, int vectorAxis=-1)
	~VectorImageRegionIterator ()

Static Public Attributes
static const unsigned int	ImageIteratorDimension = VImageDimension

Protected Member Functions
Self &	operator= (const ImageRegionIterator< ImageType > &it)
	VectorImageRegionIterator (const ImageRegionIterator< ImageType > &it)

Protected Attributes
int	m_VectorAxis
int	m_VectorSize
OffsetValueType	m_VectorStride
OffsetValueType	m_VolumeSize

Member Typedef Documentation

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::AccessorType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::AccessorType

Definition at line 272 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::ImageType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::ImageType

Definition at line 267 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::IndexType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::IndexType

Inherit types from the superclass

Definition at line 263 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::InternalPixelType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::InternalPixelType

Definition at line 270 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::OffsetType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::OffsetType

Definition at line 265 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::PixelContainer itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::PixelContainer

Definition at line 268 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::PixelContainerPointer itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::PixelContainerPointer

Definition at line 269 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::PixelType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::PixelType

Definition at line 271 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef VariableLengthVector< InternalPixelType > itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::PixelVectorType

Definition at line 274 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::RegionType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::RegionType

Definition at line 266 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef VectorImageRegionIterator itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::Self

Standard class typedefs.

Definition at line 249 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef Superclass::SizeType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::SizeType

Definition at line 264 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

typedef ImageRegionIterator< Image<TPixel, VImageDimension> > itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::Superclass

Define the superclass

Definition at line 260 of file itkVectorImageRegionIterator.h.

Constructor & Destructor Documentation

template<typename TPixel , unsigned int VImageDimension>

itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::VectorImageRegionIterator ( )

inline

Default Constructor. Need to provide a default constructor since we provide a copy constructor.

Definition at line 283 of file itkVectorImageRegionIterator.h.

References itk::VectorImageRegionIterator< TImage >::ImageIteratorDimension, itk::VectorImageRegionIterator< TImage >::m_VectorAxis, itk::VectorImageRegionIterator< TImage >::m_VectorSize, and itk::VectorImageRegionIterator< TImage >::m_VectorStride.

template<typename TPixel , unsigned int VImageDimension>

itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::~VectorImageRegionIterator ( )

inline

Default Destructor

Definition at line 292 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::VectorImageRegionIterator ( const Self &  it )

inline

Copy Constructor. The copy constructor is provided to make sure the handle to the image is properly reference counted.

Definition at line 296 of file itkVectorImageRegionIterator.h.

References itk::VectorImageRegionIterator< TImage >::m_VectorAxis, itk::VectorImageRegionIterator< TImage >::m_VectorSize, and itk::VectorImageRegionIterator< TImage >::m_VectorStride.

template<typename TPixel , unsigned int VImageDimension>

itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::VectorImageRegionIterator ( ImageType *  ptr, const RegionType &  region, int  vectorAxis = -1  )

inline

Constructor establishes an iterator to walk a particular image and a particular region of that image.

Definition at line 306 of file itkVectorImageRegionIterator.h.

References itk::VectorImageRegionIterator< TImage >::ImageIteratorDimension, itk::VectorImageRegionIterator< TImage >::m_VectorAxis, itk::VectorImageRegionIterator< TImage >::m_VectorSize, itk::VectorImageRegionIterator< TImage >::m_VectorStride, and itk::VectorImageRegionIterator< TImage >::SetRegion().

Here is the call graph for this function:

template<typename TPixel , unsigned int VImageDimension>

itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::VectorImageRegionIterator ( const ImageRegionIterator< ImageType > &  it )

protected

This constructor is declared protected in order to enforce const-correctness

Member Function Documentation

template<typename TPixel , unsigned int VImageDimension>

void itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::GetVector ( PixelVectorType &  vec, const int  offIndex = 0  ) const

inline

Get the pixel value

Definition at line 400 of file itkVectorImageRegionIterator.h.

References itk::VectorImageRegionIterator< TImage >::m_VectorSize, itk::VectorImageRegionIterator< TImage >::m_VectorStride, itk::VectorImageRegionIterator< TImage >::operator=(), and itk::VectorImageRegionIterator< TImage >::VectorImageRegionIterator().

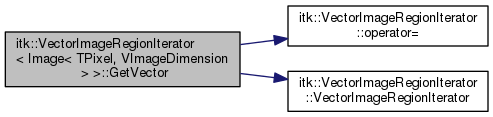

Here is the call graph for this function:

template<typename TPixel , unsigned int VImageDimension>

Self& itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::operator= ( const Self &  it )

inline

operator= is provided to make sure the handle to the image is properly reference counted.

Definition at line 325 of file itkVectorImageRegionIterator.h.

References itk::VectorImageRegionIterator< TImage >::m_VectorAxis, itk::VectorImageRegionIterator< TImage >::m_VectorSize, and itk::VectorImageRegionIterator< TImage >::m_VectorStride.

template<typename TPixel , unsigned int VImageDimension>

Self& itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::operator= ( const ImageRegionIterator< ImageType > &  it )

protected

template<typename TPixel , unsigned int VImageDimension>

void itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::SetRegion ( const RegionType &  regionInput )

inline

Set the region of the image to iterate over.

Definition at line 335 of file itkVectorImageRegionIterator.h.

References itk::VectorImageRegionIterator< TImage >::m_VectorAxis.

template<typename TPixel , unsigned int VImageDimension>

void itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::SetVector ( const PixelVectorType &  value, const int  offIndex = 0  )

inline

Set the pixel value

Definition at line 388 of file itkVectorImageRegionIterator.h.

References itk::VectorImageRegionIterator< TImage >::m_VectorSize, and itk::VectorImageRegionIterator< TImage >::m_VectorStride.

template<typename TPixel , unsigned int VImageDimension>

itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::typedef

(

itk::Concept::SameType< ImageType, Image< InternalPixelType, VImageDimension > >

)

This class requires SameTypeCheck in the form of ( itk::Concept::SameType< ImageType, Image<InternalPixelType, VImageDimension> > )

Member Data Documentation

template<typename TPixel , unsigned int VImageDimension>

const unsigned int itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::ImageIteratorDimension = VImageDimension

static

Dimension of the image the iterator walks. This constant is needed so functions that are templated over image iterator type (as opposed to being templated over pixel type and dimension) can have compile time access to the dimension of the image that the iterator walks.

Definition at line 257 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

int itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::m_VectorAxis

protected

Definition at line 424 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

int itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::m_VectorSize

protected

Definition at line 423 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

OffsetValueType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::m_VectorStride

protected

Definition at line 422 of file itkVectorImageRegionIterator.h.

template<typename TPixel , unsigned int VImageDimension>

OffsetValueType itk::VectorImageRegionIterator< Image< TPixel, VImageDimension > >::m_VolumeSize

protected

Definition at line 421 of file itkVectorImageRegionIterator.h.

---

The documentation for this class was generated from the following file:

• Modules/Common/include/itkVectorImageRegionIterator.h
